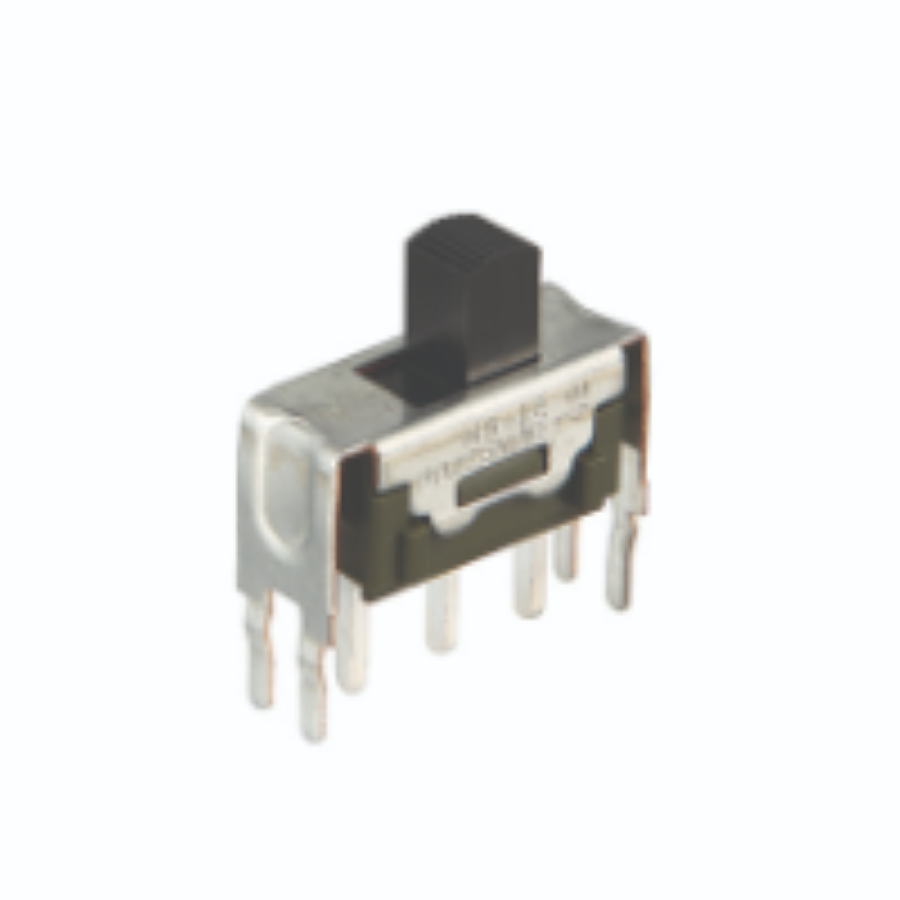

MS12ASW13
Manufacturer:
NKK Switches
Mfr.Part #:
MS12ASW13
Datasheet:
Description:
Slide Switches Through Hole ON - ON Current Rating:6 A Standard
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 125 V |
| Length | 16.2 mm |
| Termination | PC Pin |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -30 °C |
| Voltage Rating (AC) | 125 V |
| Packaging | Bulk |
| Depth | 7.1 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Silver |
| Contact Material(Contact Finish) | Silver |
| Current Rating | 6 A |
| Max Current Rating | 6 A |
| Orientation | Vertical |
| Actuator Length | 5.1 mm |
| Throw Configuration | SPDT |
| Contact Style | Non-Shorting |
| Max Voltage Rating (AC) | 250 V |
| Switch Function | ON - ON |
| Electrical Life | 25 kcycles |
| Switch Travel | 2.2 mm |
| Actuator Material | Polybutylene Terephthalate (PBT) |
| Mechanical Life | 100 kcycles |
| Contact Current Rating | 6 A |
| Actuator Type | Standard |
| Termination Style | PC Pin |
